The Kemi Project is designed for construction using aerated concrete masonry with density D400.
Technical and Economic Indicators
-
Floors: 1.5
-
Building footprint: 101.3 m²
-
Usable house area: 107.7 m²
-
Terrace area: 61.4 m²
Volume and Layout Solutions
Ceiling height:
-

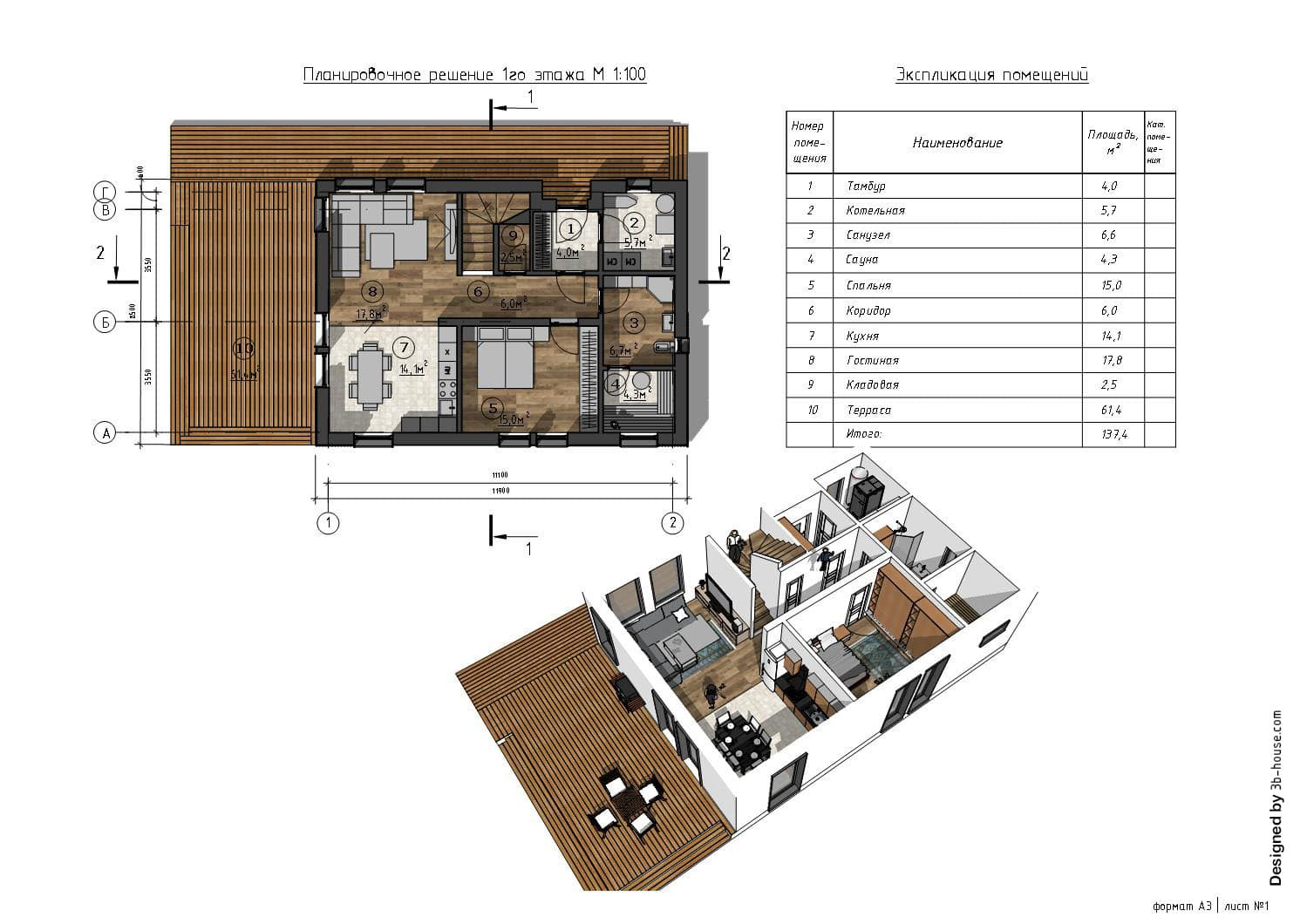

First floor: 3.0 m
-

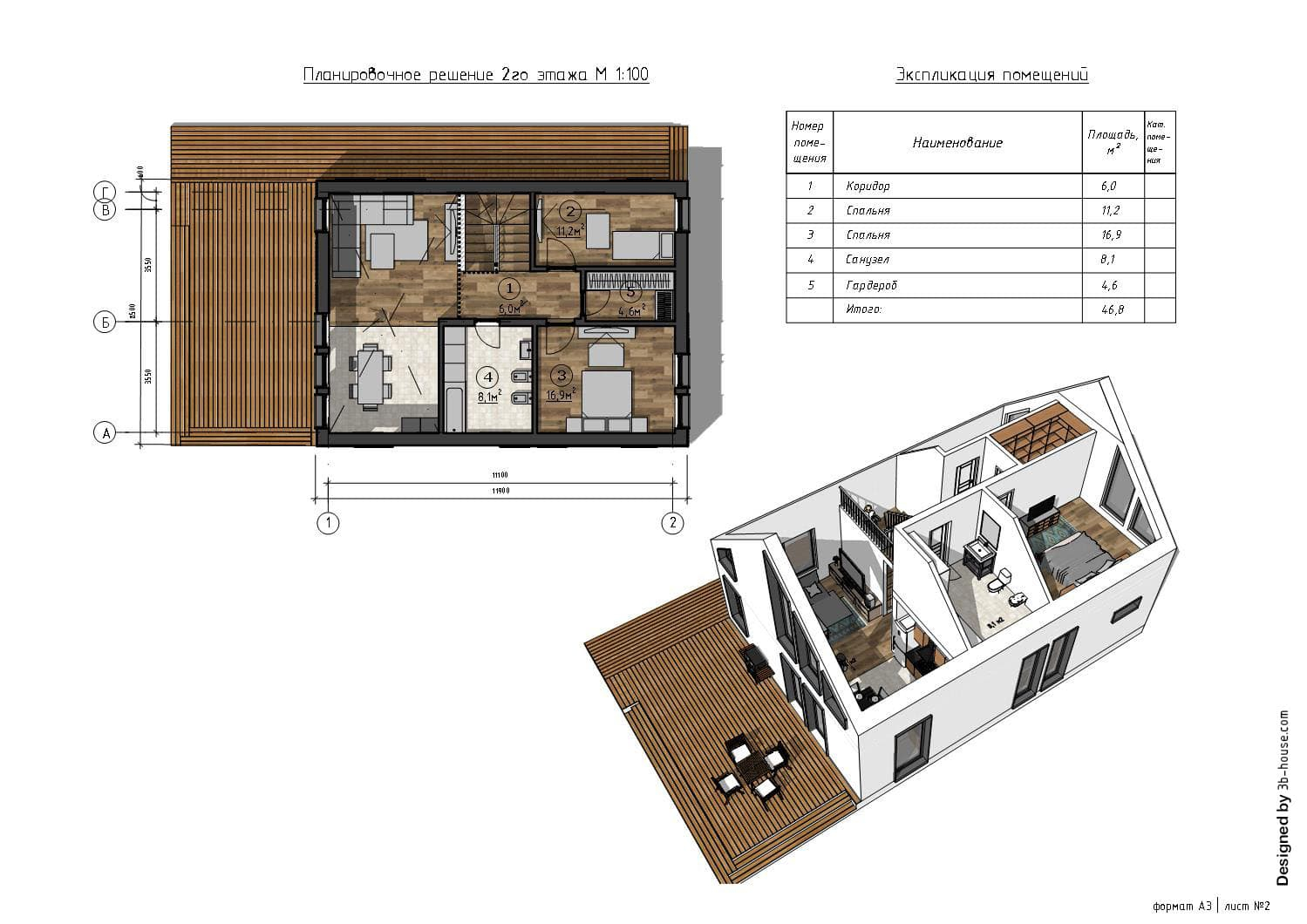

Second floor: 2.8 m
-
Double-height ceiling in the living room area: 6.1 m
Structural Solutions
-
Structural system: load-bearing walls
-
Foundation: monolithic reinforced concrete slab or strip foundation
-
Exterior walls: 400 mm D400 aerated concrete blocks
-
Interior walls: 250 mm D400 aerated concrete blocks
-
Partitions: 150 mm D400 aerated concrete blocks
-
Roof: standing seam metal roof
-
Floor structure: monolithic reinforced concrete slab or “Marko” slab
-

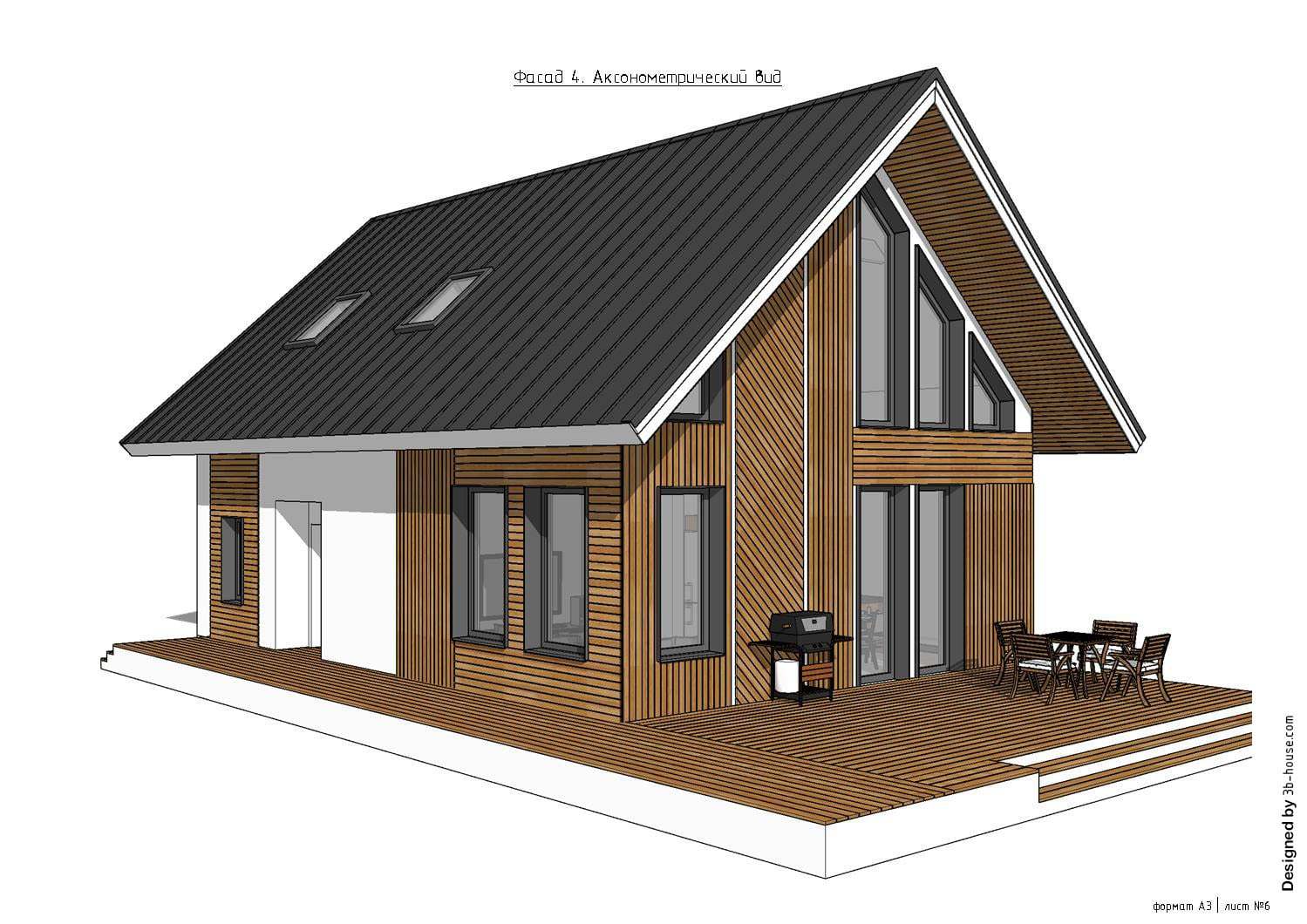

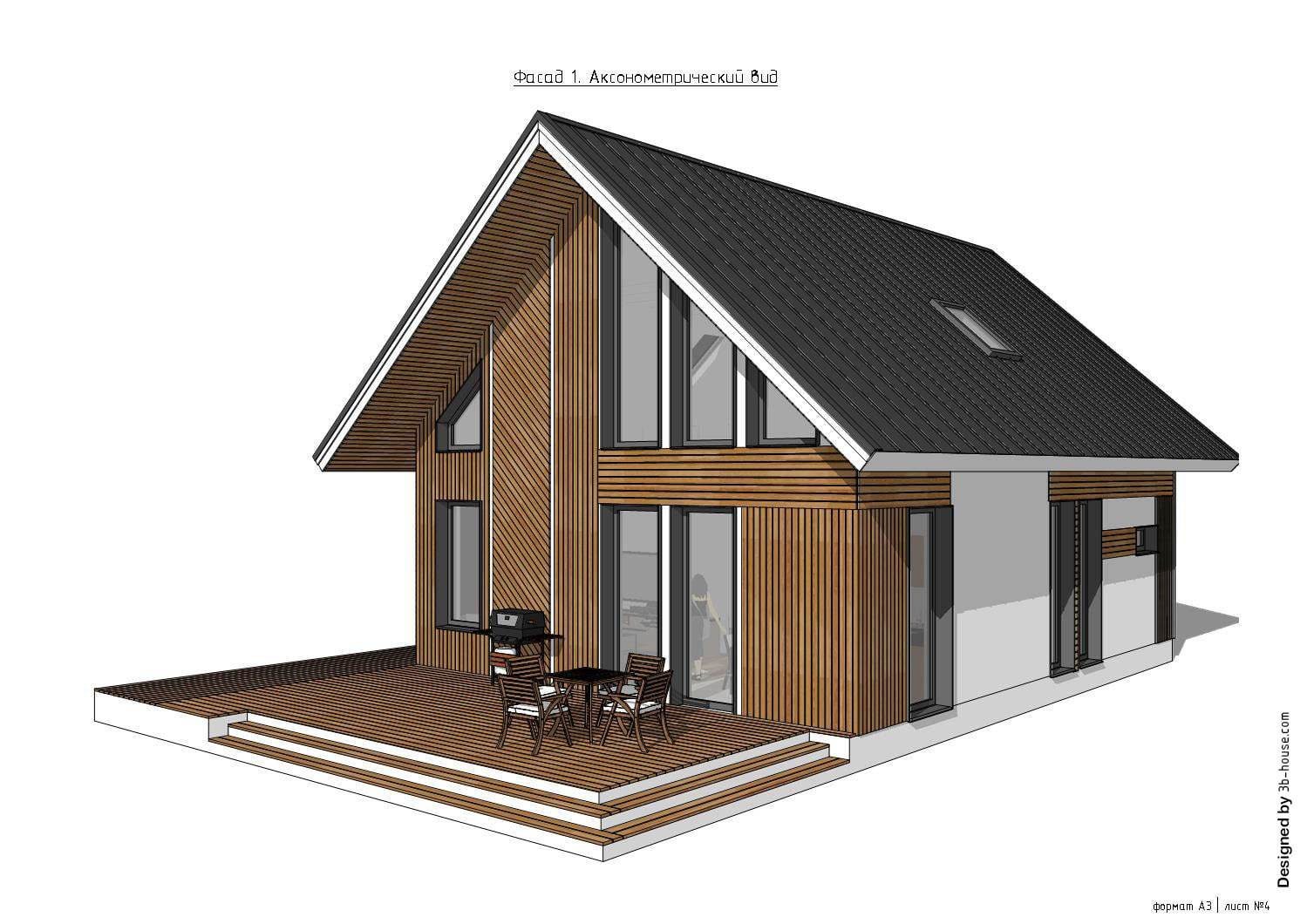

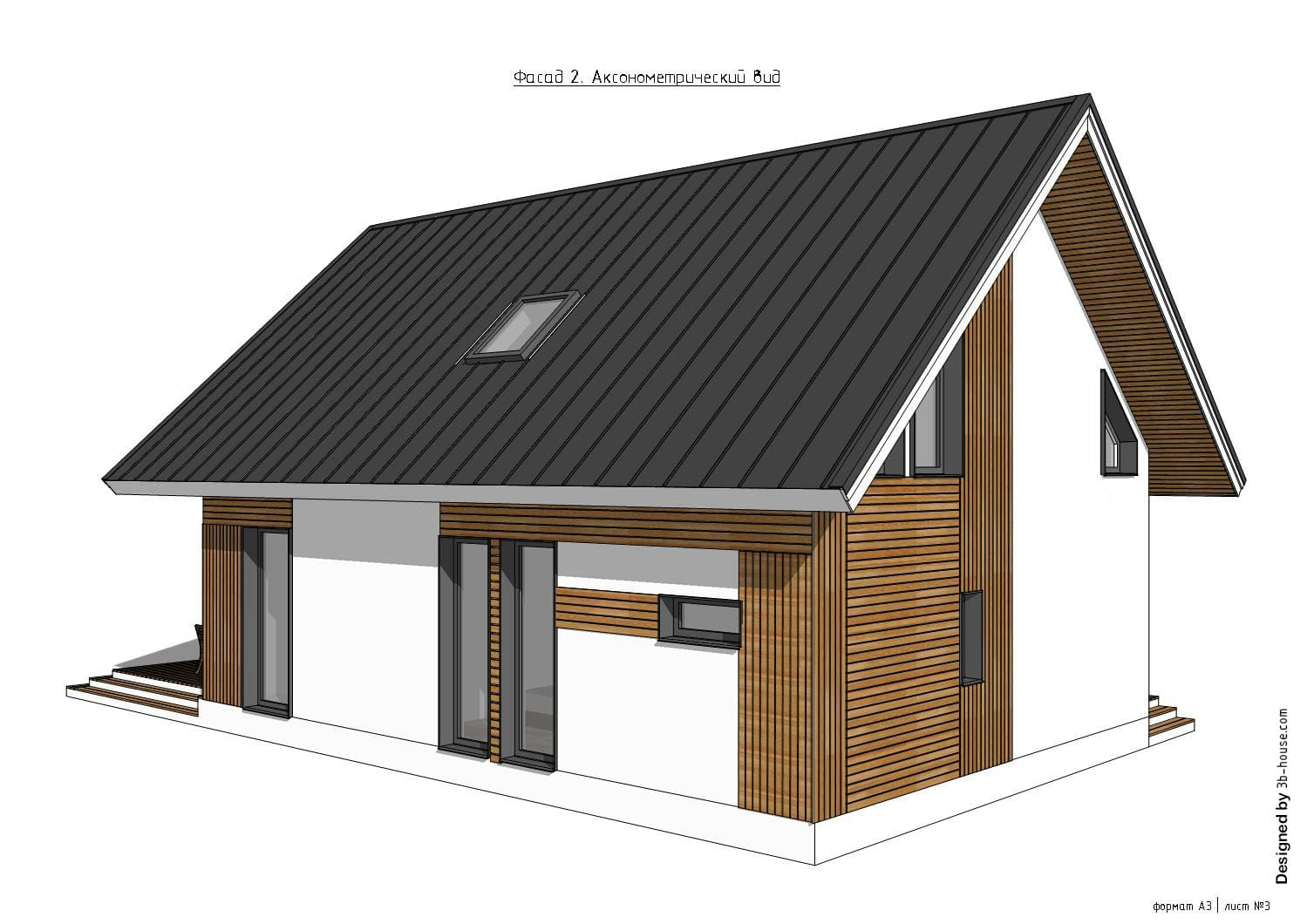

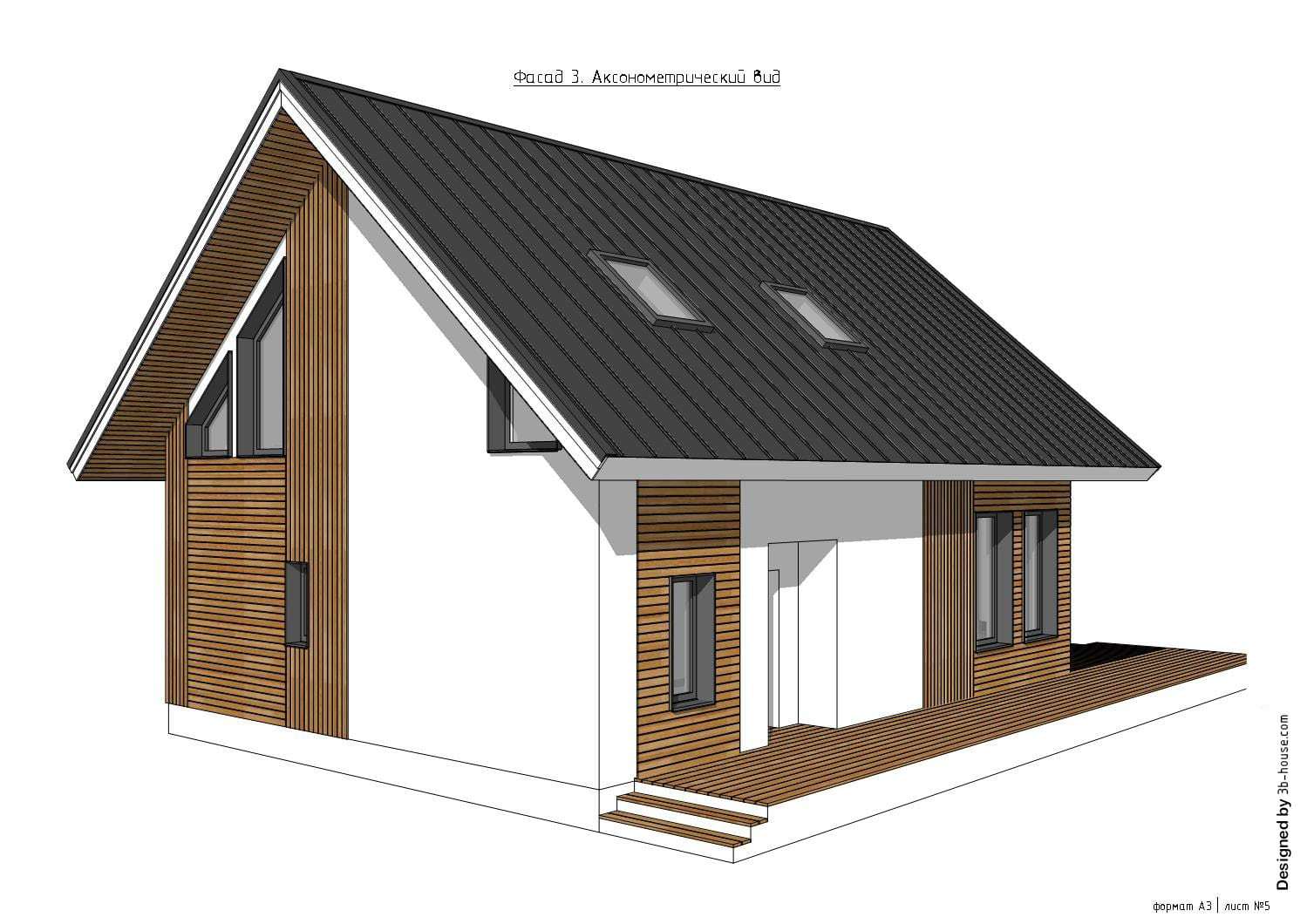

Facade finish: plaster over 50 mm mineral wool insulation with wooden plank elements
-
Porch covering: larch decking
Engineering Systems
Engineering equipment includes:
-
Electricity supply: from the external power grid
-
Cold water supply: from the external water system
-
Hot water supply: indirect heating boiler
-
Sewage: local treatment station
-
Heating: mains gas or electric convectors
